Module 1
Rough It Out
Turn a hand sketch into your first 3D scaffold model.
Import a sketch, trace walls and drop in a quick scaffold to set bays and heights. In minutes a rough idea becomes a usable design that helps you price and pitch faster.
Module 2
Design Smarter
Refine the model using real PDF or DWG drawings.
Overlay plans, snap your scaffold to building lines, then tweak bays, heights and ties. Accurate quantities and alignment cut waste and boost safety from the start.
Module 3
Team Review

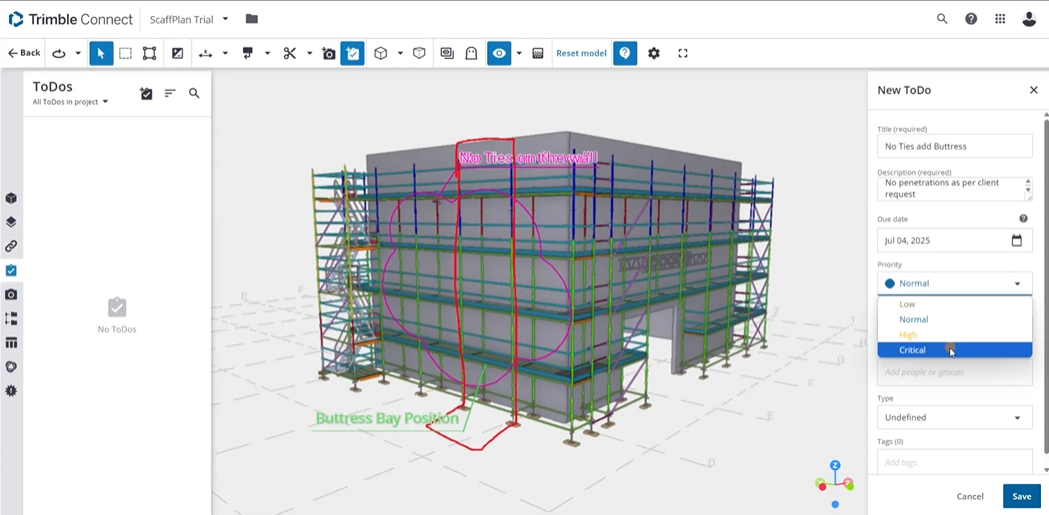

Publish the model to Trimble Connect for internal feedback.
Share the IFC with colleagues and pin comments directly in 3D. Early feedback catches clashes and gear gaps while every decision stays logged for accountability.
Module 4
Make It Pop
Create flythroughs and visuals your client will instantly understand.
Produce a short flythrough and crisp screenshots for tenders and progress meetings. Eyecatching visuals eliminate confusion now and protect you later if scope shifts.
Module 5
Finish the Model

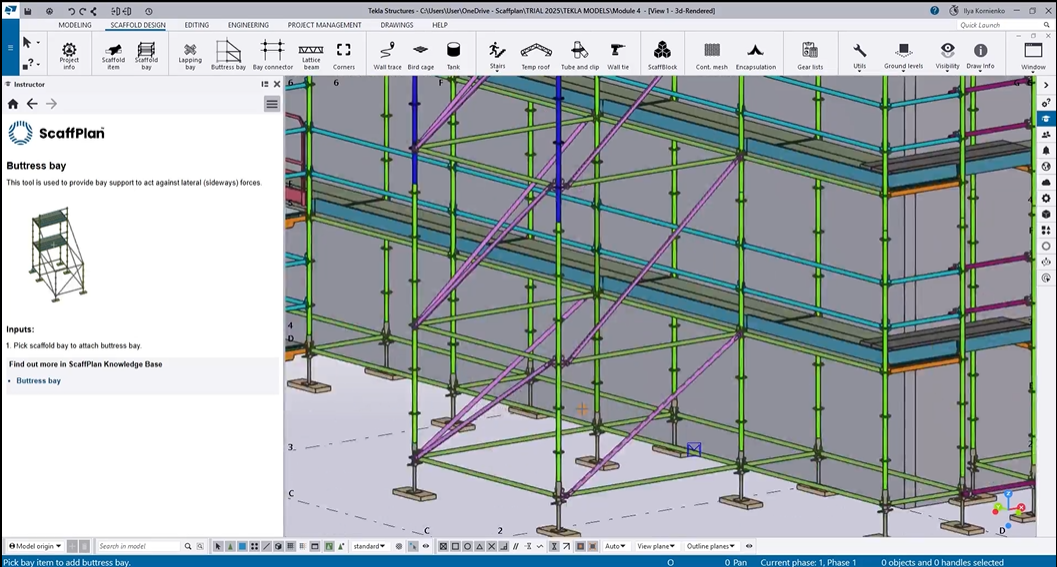

Add the fine detail that makes the scaffold siteready.
Drop in ladders, braces and ties to turn the concept into a buildable scaffold. This detail stage removes rework and the AI coach nudges you if anything’s missing.
Module 6
Drawing Sheets

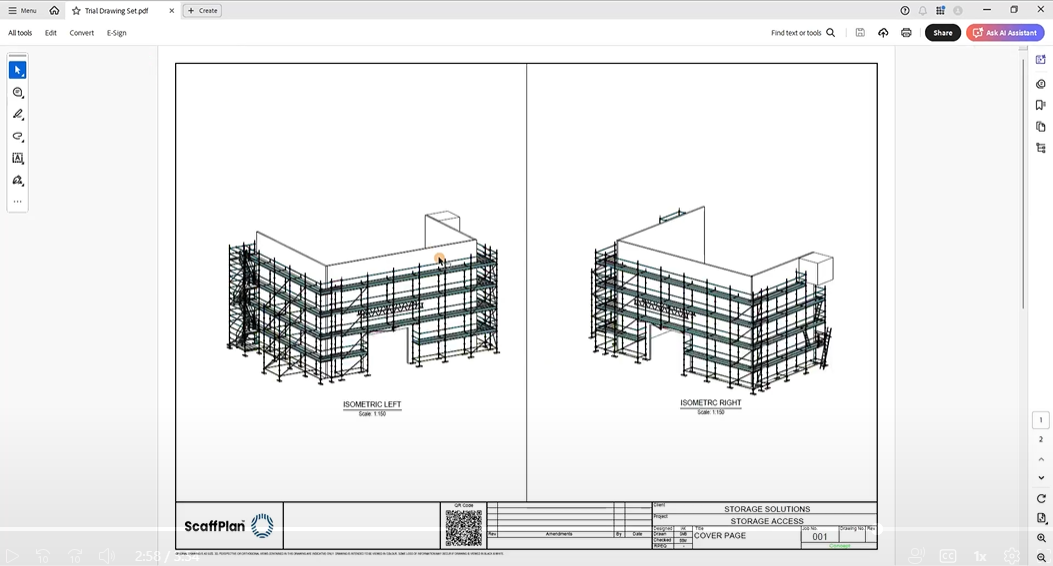

Generate clear, QR linked drawings in minutes.
Autocreate drawing sheets with dimensions, notes and a QR code that jumps to the live model. One source of truth keeps crews, engineers and clients aligned, slashing phone calls and delays.
Module 7
Load Checks

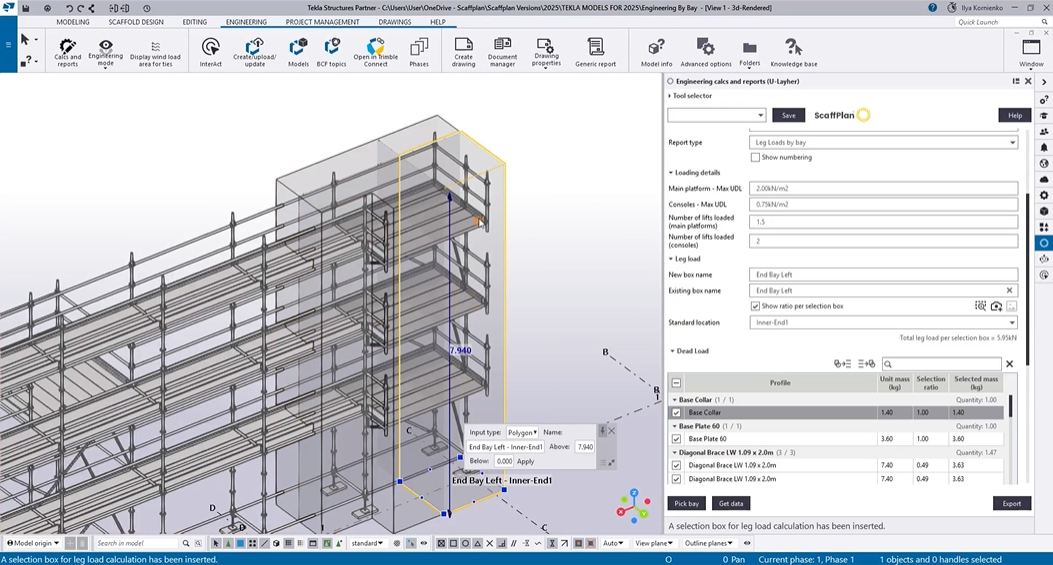

Run a quick legload check before the engineer sees it.
Scan the scaffold for overloaded bays and flag issues early. Five minutes here can save hours of redesign and shows you lead on safety.
Module 8
Change Happens
Apply site feedback and republish updated drawings fast.
Tweak the model from site markups and republish; drawings and QR codes update automatically. Every change is tracked, so variations are crystalclear and your agility keeps crews moving.
Module 9
Scale It
Turn today's model into tomorrow's repeatable template.
Save the finished scaffold, sheets and settings as a reusable template. Standardising best practice cuts future design time and spreads ScaffPlan’s benefits across every project.
